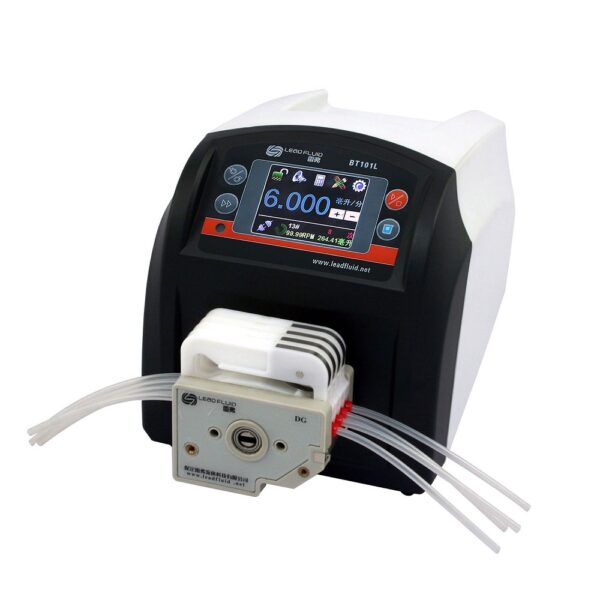

پمپ پریستالتیک مدل BT101L محصول Lead Fluid

Functions and Features

• Color LCD display, touch screen and keypad for operating.
• Reversible direction, start/stop control and adjustable speed.
• Flow rate calibration.
• Flow rate display and control; Cumulative dispense volume display.
• Anti-drip function ensures dispense accuracy.
• 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
• Precise motor control technology improves dispense accuracy compared to the traditional dispense mode.
• Professional operating system, configure system with setup wizard.
• Intelligent temperature control to minimize working noise.
• Logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the rotating speed. Control signal is optically isolated.
• With RS485 MODBUS interface, easy to communicate with external device.
• Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
• Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
• ABS plastic housing, streamlined shape.
• Drive multi-channels and various types of pump heads.
• Optional footswitch and remote infrared control.

Specifications

• Flow range: 0.0001-720 mL/min
• Speed range: 0.1-150 rpm
• Speed resolution: 0.1rpm
• Speed accuracy: 0.2%
• Power supply: AC100-240V 50Hz/60Hz
• Power consumption: < 30W
• External logic level control signal: 5V, 12V (standard), 24V (optional)
• External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
• Communication interface: RS485 MODBUS interface
• Operating condition: Temperature 0-40 °C; Relative humidity < 80%
• IP grade: IP31
• Dimensions (L x W x H): 257 x 198 x 182mm (10.12 x 7.80 x 7.17 inch)
• Weight: 4.8 kg (10.6 lbs)

BT101L Suitable Pump Heads and Tubing, Flow Parameters
